| Lugar de origen: | JIANGSU |
|---|---|
| Nombre de la marca: | baosteel，hongwang,tisco |
| Certificación: | SGS ， |
| Número de modelo: | 300 series 304 |
| Cantidad de orden mínima: | 100Ton |
| Detalles de empaquetado: | Papel de Kraft, caso de madera, empaquetando según requirments del cliente |
| Condiciones de pago: | L/C, D/P, T/T |
| Capacidad de la fuente: | 1000 toneladas por tonelada |
| Longitud: | 2000~3000m m | Anchura: | 1000~1500m m |
|---|---|---|---|
| Técnica: | Laminado en caliente en frío | Nombre de producto: | Placa inoxidable de la hoja de acero |
| Final superficial: | BA/2B/NO.3/NO.4/8K/HL/2D | Tratamiento técnico:: | Laminado |

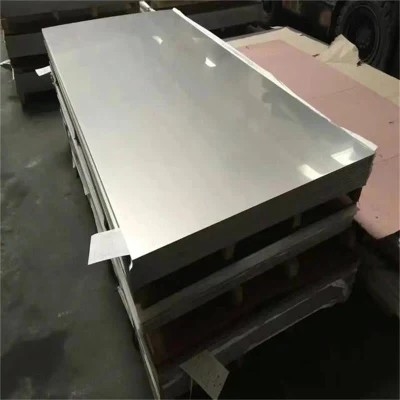

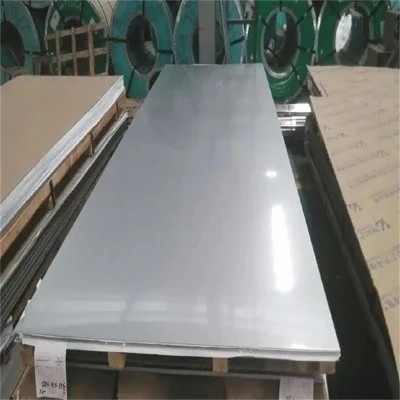

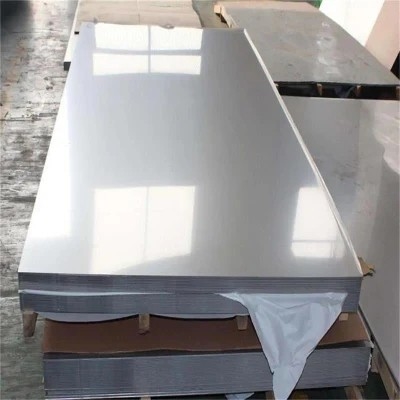

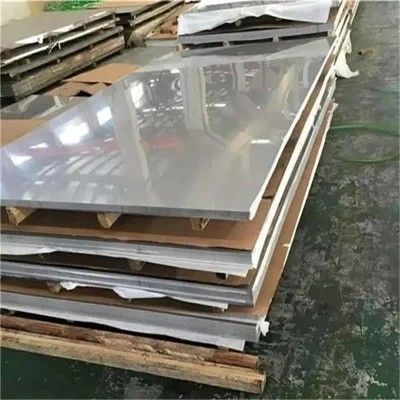

Hoja de acero inoxidable superficial pulida en frío 2b del tratamiento 304
CARACTERÍSTICAS:
PROPIEDADES MECÁNICAS:
|
Laminado
|
Grueso
|
0.3-3m m
|
Anchura
|
1000-2000m m
|
|
|
Espec. normal.
|
T*1220mm
T*1800mm
T*2000mm
1.0mm*1500m m
|
||
|
|
Grueso
|
Debajo 0.3m m
|
Anchura
|
10mm-1000m m
|
|
|
Grueso
|
4.0m m 5.0m m 6.0m m
|
Anchura
|
1500m m
|
|
|
Espec. normal.
|
4.0*1500m m
5.0*1500m m
6.0*1500m m
|
||
|
Laminado en caliente
|
Grueso
|
3.0-16m m
|
Anchura
|
1500-2000m m
|
|
|
Espec. normal.
|
T*1500mm
T*1800mm
T*2000MM
|
||
|
Material
|
200series
|
201 / 202
|
||
|
|
300series
|
304 / 321/316L/2205/235MN/
347H / 2520/2507/317L/309S/310S/904L
|
||
|
superficie
|
No.1, 2.o, 2B, VAGOS, No.3, No.4, No.240, No.320, No.400, HL, No.7, No.8, grabó en relieve
|
|||
| Propiedades químicas del grado material de acero inoxidable Frecuente-usado | |||||||||||
| UNS | ASTM | EN | JIS | El C% | El Mn% | El P% | El S% | El Si% | El Cr% | El Ni% | El Mo% |
| S20100 | 201 | 1,4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1,4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1,4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1,4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1,4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1,4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1,4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1,4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1,4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1,4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1,4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1,4550 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1,4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1,4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1,4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1,4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1,4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1,40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1,4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1,4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1,4410 | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | |
| S31803 | SAF2205 | 1,4462 | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 | |
| N08904 | 904L | 1,4539 | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 | |
